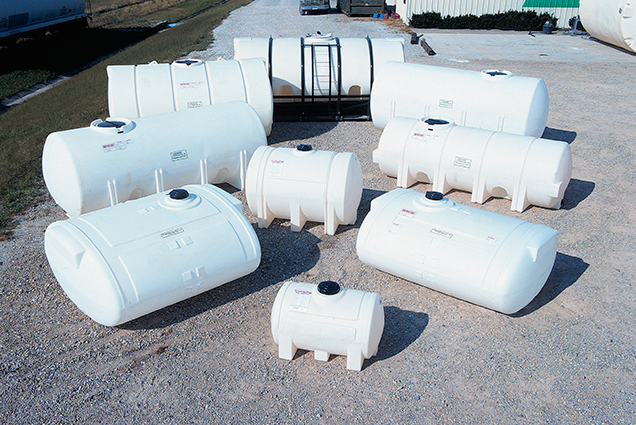

HORIZONTAL STORAGE TANKS

HORIZONTAL LEG TANKS (HOOP ASSEMBLY REQUIRED)

Note: ** Tank mold is transferred from plant to plant. Availability/lead time at plants dependent on available stock and mold location

part number description capacity (gal) diameter (in) height (in) length (in) f.o.b.
1360000N-- Horizontal Leg Tank 730 54 58 80 L P C
1300000N-- Super Nurse Tank 750 46 48 117 L
1440000N-- ** Horizontal Leg Tank 1025 48 50 139 L P C
1000700N-- ** Horizontal Leg Tank 1650 71 55 142 M C
1460000N-- Horizontal Leg Tank 1685 62 62 159 L
1002300N-- ** Horizontal Leg Tank 2000 84 55 142 P C
7510000N-- Horizontal Leg Tank 2000 62 70 160 L
8470000N-- ** Horizontal Leg Tank 2600 82 70 155 L M C
8470100N-- ** Horizontal Leg Tank 2600 82 70 155 P
7500000N-- ** Elliptical Leg Tank (1.5 S.G.) 3000 92 76 142 L P M C
7520000N-- ** Horizontal Leg Tank (1.5 S.G.) 3400 82 86 155 L

PCO TANKS

part number description capacity (gal) diameter (in) height (in) length (in) f.o.b.
1090000N-- PCO Tank, 6" Lid 30 19 22 25 L P C
1170000N-- PCO Tank, 6" Lid 50 20 22 38 L P C
1200000N-- PCO Tank, 10" Lid 100 30 31 38 L P C
1570000N-- PCO Tank, 10" Lid 150 36 29 48 L P C
1660000N-- PCO Tank, 10" Lid 200 37 39 49 L P C
1720000N-- PCO Tank, 18" Lid 325 38 37 69 S

ACCESSORIES

part number description
45400006 300 X 38" HOOP PIPE ASSEMBLY (2) - "C" F.O.B. Tanks Only
45400007 500 X 49" HOOP PIPE ASSEMBLY (2) - "C" F.O.B. Tanks Only
45300001 525 X 48" HOOP PIPE ASSEMBLY (2)
45400002 730 X 54" HOOP ASSEMBLY (EACH)
45200003 750 - 46 ASSEMBLY (3)
45200004 1000 - 46 ASSEMBLY (4)
45300003 1025 - 48 ASSEMBLY (4)
99402217 1600 ASSEMBLY (4)
45500001 1685 - 60 ASSEMBLY (4)
45500002 2000 X 60 ASSEMBLY (4)
45700004 2600 ASSEMBLY (4) - fits 2600 HLT #8470000N- (L,M,C)
45700005 2600 ASSEMBLY (4) - fits 2600 HLT #8470100N- (P)
45800000 3000 ASSEMBLY (4)
45700001 3400 ASSEMBLY (4)

SADDLE & SKID PADDING BANDS

part number description
33900093 56" LEG TANK BAND EACH (fits 30 & 60 Leg)
33900094 74" LEG TANK BAND EACH (fits 125 Leg)
33900095 95" LEG TANK BAND EACH (fits 230 & 300 Leg)
33900096 119" LEG TANK BAND EACH (fits 500 Leg)
33900097 136" LEG TANK BAND EACH (fits 730 Leg)
34700014 J-BOLT PKG
