Double Wall IBC Totes

Deuce Double Wall IBC Totes

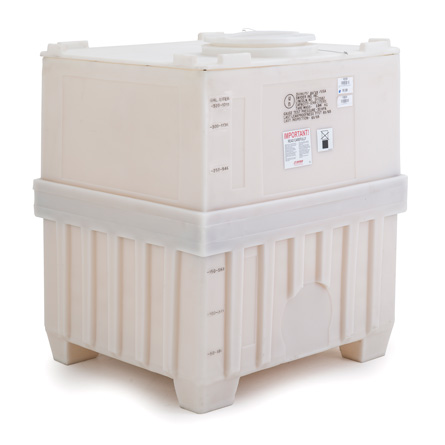

The Deuce


Two tanks in one for the ultimate in safe and secure liquid transportation. Snyder revolutionary double wall IBCs provide a built-in secondary containment for an IBC in transit. The inner polyethylene bottle is encased in an outer polyethylene bottle base to contain any spills.

  • Heavy-duty polyethylene bottle enclosed in a 3/8” thick polyethylene secondary containment.
  • 330 gallon Deuce meets UN/D.O.T. certified (UN 31H1) for Packing Group II and III per Title 49 CFR.
  • UN/D.O.T. certification for 180 gallon Deuce is available upon special request
  • 7" screw cap with heavy-duty buttress threads.
  • Contains stacking leg positioners for secure stacking two high.
  • Available in 180 and 330 gallon sizes.
  • Molded four-way forklift entry.
  • Sloped bottom assists in complete product drainage.
Capacity Dimension W/D/H S.G. Tare Weight
180 Gallon 43 1/2" x 49" x 36" 2.0 304 lbs
330 Gallon 43 1/2" x 49" x 57 1/2" 2.0 459 lbs
330 Gallon Double Wall IBC Tote

Double Wall 330


A tough stackable triple-wall reinforced and insulated all poly 330 gallon container for a wide range of chemical applications.

  • Rugged all polyethylene double wall construction provides superior strength and impact resistance.
  • Frame cavity is insulated with polyurethane foam for temperature sensitive liquids.
  • Protected and secured discharge in a recessed area protected by a sliding gate.
  • Tapered bottom with unique patented discharge system with 2" ball valve attached to molded spout.
  • Manufactured from food grade polyethylene.
  • Space saving stackable design.
  • UN/D.O.T certified (UN31HH1) for Packing Group II and II per Title 49 CFR.
  • Sloped bottom assists in complete product drainage.

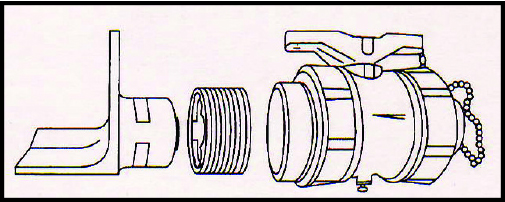

A unique complete drainage system. The 2" valve seals the drain spout using a split ring collar. A bracket supports the recessed valve to the tank. The valve can be locked in the closed position to prevent accidental discharge.



valve

Gallons/Liters Tare Weight Length Width Height
330/1250 331/147 48" 45" 65 1/4"
